SKU: ILED5X7

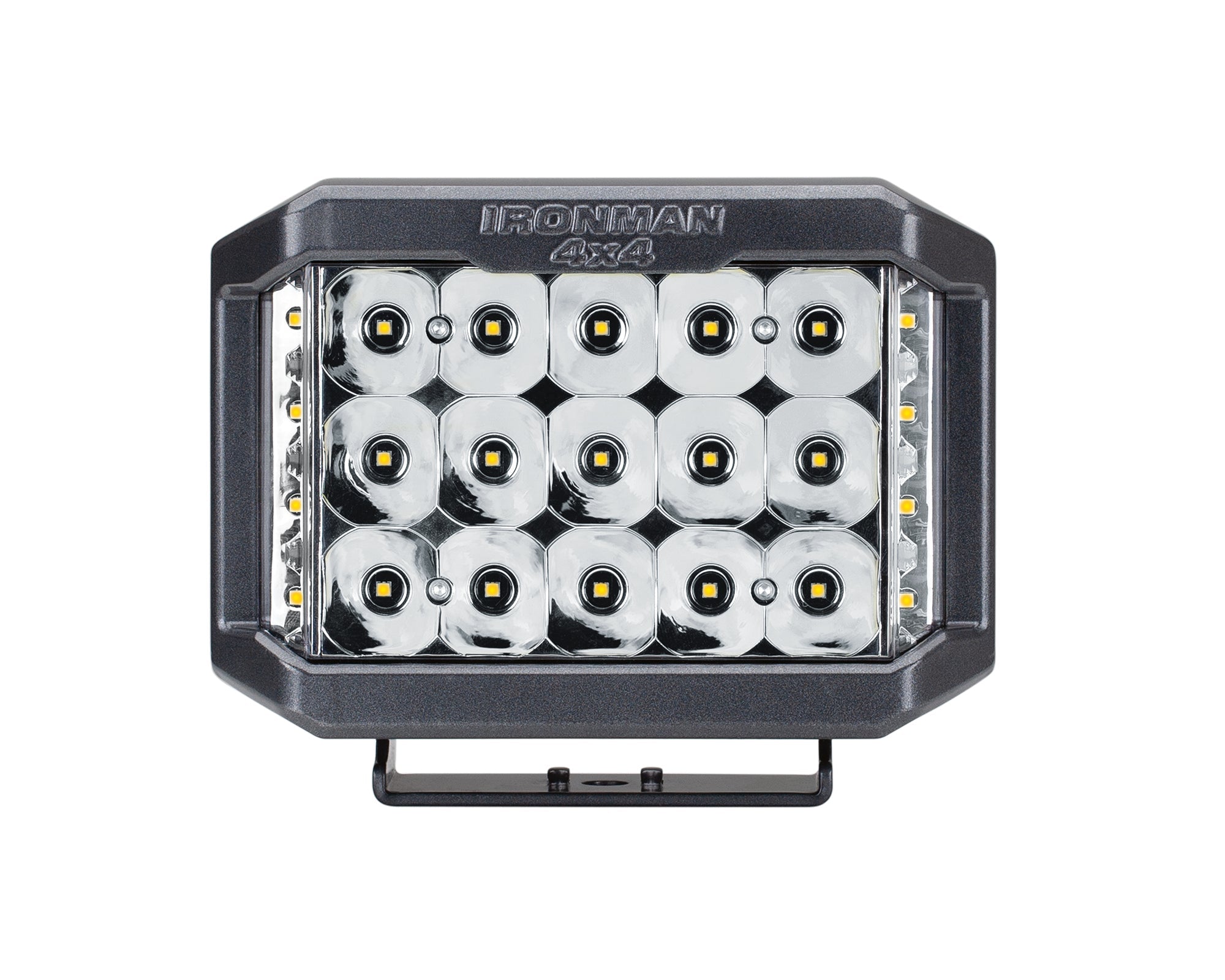

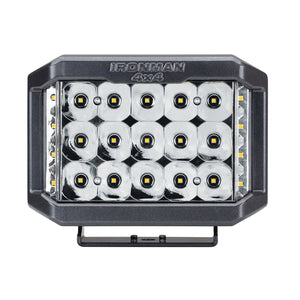

The Eclipse 5x7 driving lights offer a whole different look, and well complement many, if not most vehicles with their squared off appearance. Combining 15 high powered LEDs for forward projection and 8 side-shooters for optimal spread, the Eclipse 5x7 features a cast aluminium heat sink, IP67/69 rating as well as a virtually indestructible polycarbonate lens.
Class Leading OSRAM LEDs
50,000 hour lifespan
6000-KELVIN Colour
optimal light thats easy on the eyes
Diecast Alloy Housing
withstand extreme conditions
Bringing back the retro style in driving lights with these 5x7 Eclipse LED driving lights.
The perfect rectangle shape combined with a side shooter spread provides straight-up distance with a pleasing amount of spread.
Designed and engineered to produce the closest imitation light to natural daylight (6000K), the 5x7 Eclipse driving light provides a beam reach of over 1.3km with a combined wattage of 99W per light.
Raw Lumens:7,540
Effective Lumens: 5,654
Lumen Efficiency: 74.99%
LEDS: OSRAM
LED Configuration: 15 x 5W and 8 x 3W
Dimmability: No
IP Rating: IP67/69K
1 LUX Rating: Single: 648m
LUX @ 10M: 4,200
Max Power: 75W
Current Draw: ~6.48 amps @ 12V
Kelvin (Colour): 6,000K
Dimensions (Light): 177mm(l) x 164mm(w) x91mm(d)
Height (including mount): 164mm (6.4)
